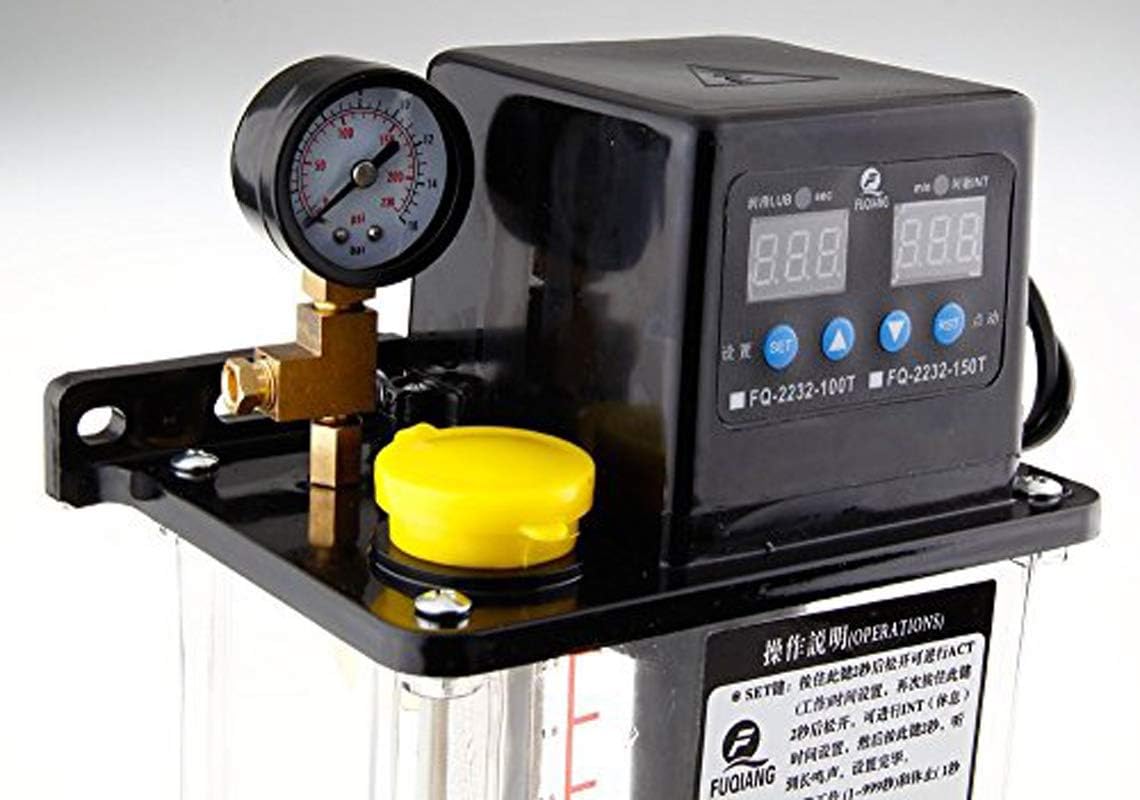

1.5L Automatic Lubrication Pump Oiler NC Pump Lubricator 6mm 110V Dual Digital Display

Operation instruction1. Set the time interval, long press "SET" key to enter set up status, short press the "SET" key again can choose you need to set up the numbers, press ▲▼ the key, corresponding SET number. First enter the time interval (0-999Min), long press "SET" key to enter running time (0-999 seconds), long press "SET" key to save the set time. 2. The alarm buzzer continuously ring, display shows "ERO" for the oil level alarm, please add gas the fuel tank. 3. Press the inching button, hold down the inching button pump to inter working condition. Parameter 1. Input voltage: 110V 2. Rated Rotary Speed: 3360rpm/Min 3. Motor power output: 25W 4. Current: 0.35A 5. Rated Pressure: 10Kgf/cm2 6. Max.Pressure: 12Kgf/cm2 7. Volume: 1.5L 8. Discharge capacity: 50ml/Min 9. Viscosity: 30~1000 C.st 10. Oil-caliber: 6mm 11. Size:193*125*227mm 12. Center Pitch: 110-148mm Package Include: 1 x Set of Automatic Lubrication Pump

• Easy installation, simple wiring (direct access to 110V). Built-in oil pump buzzer alarm to remind.
• Automatic Lubrication Pump, can replace the manual pump, pump intermittent pre-TM
• Intermittent working time set free, straightforward operation. Set working hours range (1-999 seconds, set the maximum working time 16 minutes). Set break time range (1-999M / min, maximum rest time 16.65 hours)
• There are visual oil level gauge and automatic detection devices, when there is insufficient fuel, automatic alarm to remind refueling
• Recommend the use of N15 # -N68 # lubricants (oil) rail oil
