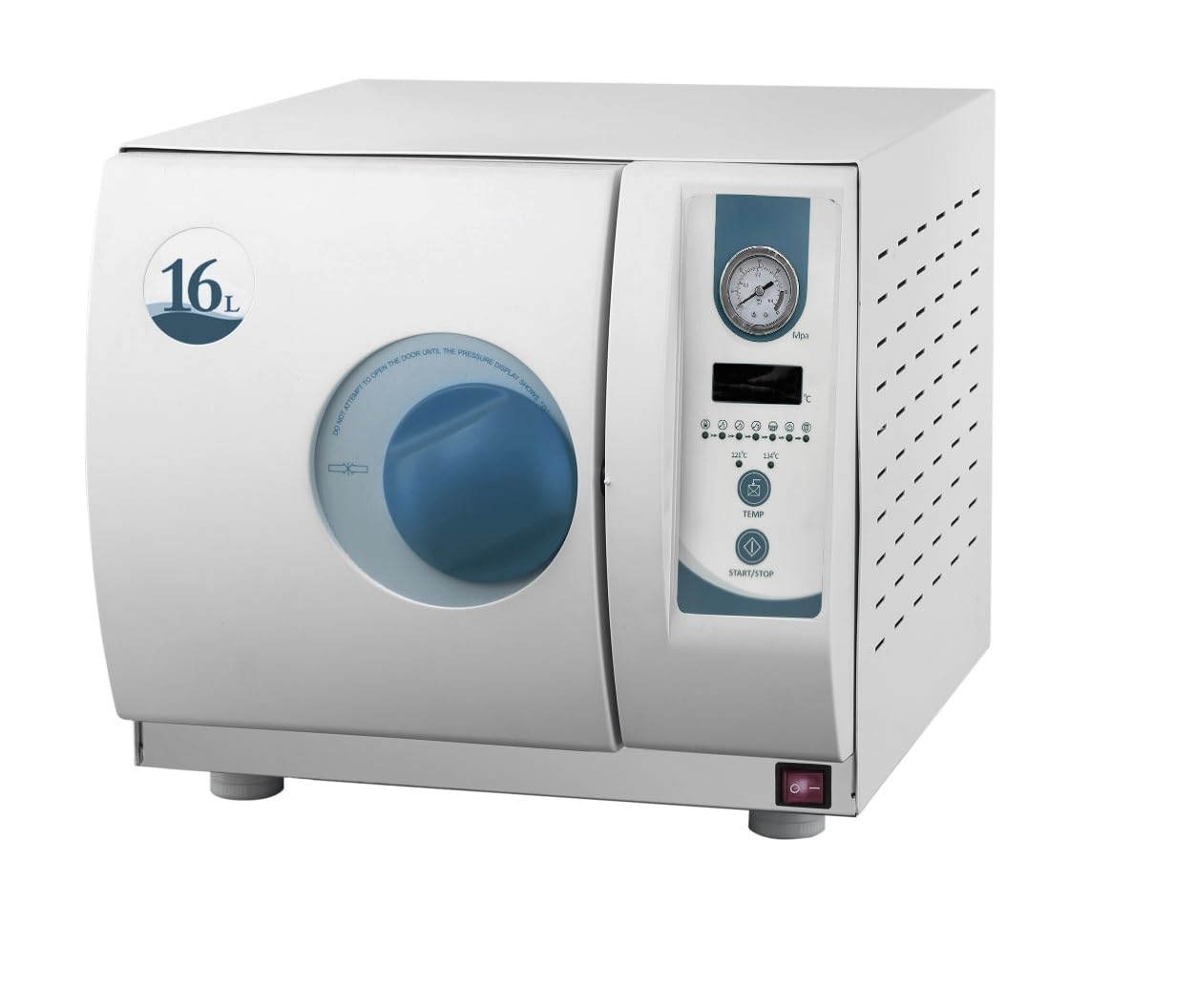

16L Automatic Exhaust Sterilizer Lab Steam Autoclave European N (Yello)

Specification: Overall size (L *W*H) mm 440*580*390 Chamber size( mm) <1>230*370 Voltage 110V-/120V- 230V-240V Chamber capacity (L) 16L Product classification N Input power (VA) 1800VA Design pressure (MPa) -0.1/0.28MPa Design temperature ("C) 140"C Temperature display accuracy 0.1·c ("C) Pressure display accuracy (kPa) 1kPa One cycle water consumption(mL) 400 mL Environment temperature ("C) +5"C~40"C Relative humidity range ≤85% Net weight (kg) 26 kg Max load(kg) 31kg Noise 70dBA Max. instrument load 4.5kg Max. fabrics articles load 2.5kg Single package max weight 1.5kg Fuse parameter F20AL250V F12AL250V * Sterilization temperature: 121oC/20min, 134oC/6min Package content instrument tray support (one unit) instrument tray (three units) regulating wrench (one unit) instrument tray handle (one unit) collar (two units) fuse (two units) silicon tube (one unit) blocking bar (one unit)

• Product composition:The product is composed by sterilization SS304 chamber, thermal-protective coating, door assemblies, solenoid valve, piping system, electrical system, main board, control board and shell.
• Safety equipment introduction:heat protector,door safety system,automatic safety valve.
• Feature:1800W heating elements, speed up the heating, more efficient
• OPERATION:1) turn on the power, the system begin to self-test 2) press TEMP button twice, the 134 "C indicator will be on 3) press the START/STOP button, the RUNNING indicator will be o
• Application:pproduct is used for surgical instruments, medical instruments, dental instruments, and which can be sterilized by high temperature and high pressure.
