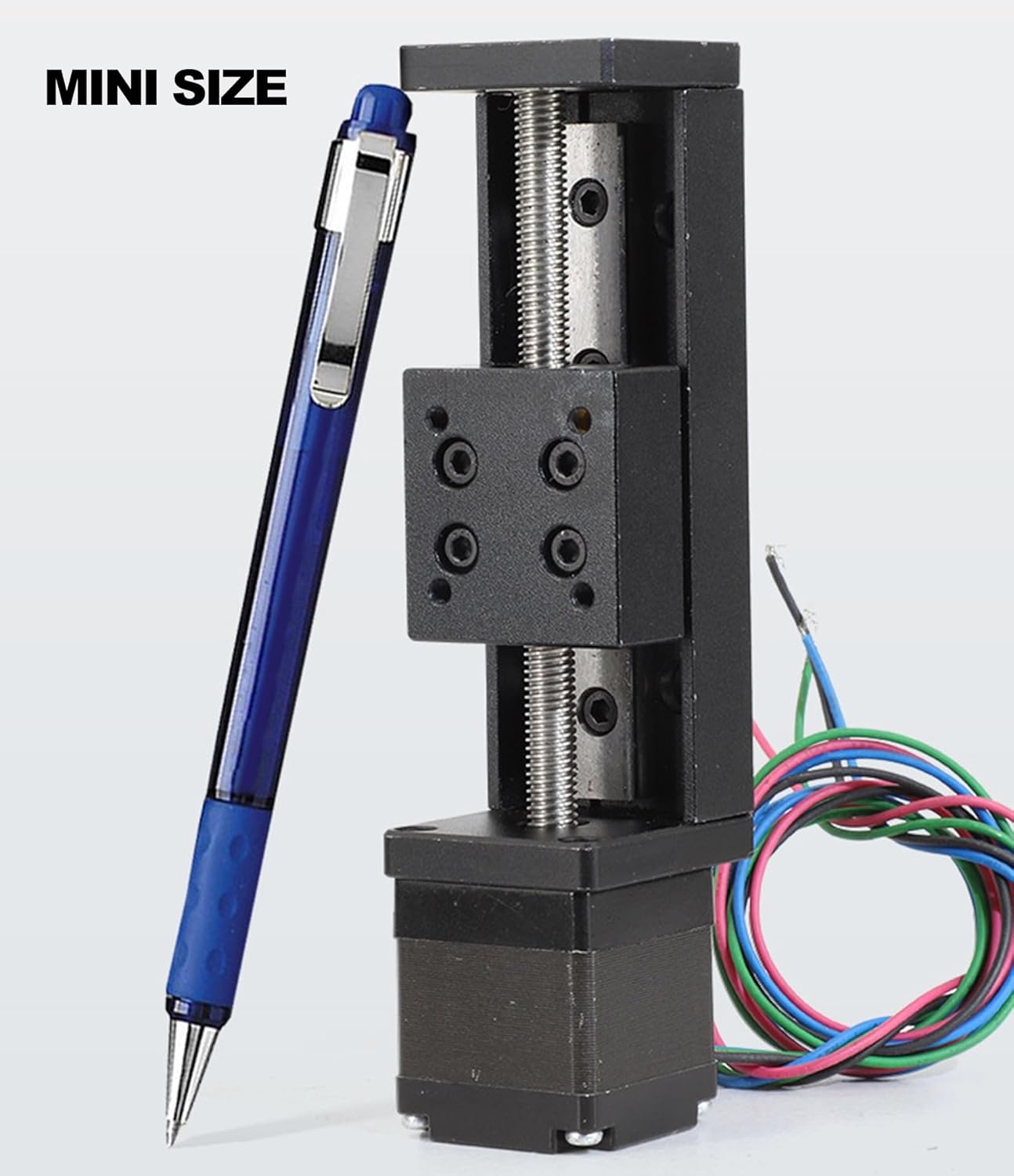

50mm Travel Mini Linear Stage Actuator, Linear Rail Slide Actuator with 28 * 30 Stepper Motor, T Screw Rod for DIY CNC Router Parts X Y Z Axis
4.2 (135 items)
Limited Time SaleUS$19.04 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211204616 | Release Date | 2026/04/04 | List Price | US$12.69 | Model Number | 211204616 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
50mm Travel Mini Linear Stage Actuator, Linear Rail Slide Actuator with 28 Stepper Motor, T Screw Rod for DIY CNC Router Parts X Y Z AxisMini linear stage actuator provides an effective travel of 50mm or 2 inch, load capacity up to 5kg horizontally and 1kg verticallyLinear rail slide actuator features a T screw threaded rod, diameter of 6mm, lead of 1mm, repeat positioning accuracy of ±0.1mmLinear slide table allows for speed adjustment 0-8mm, where a pulse generator is requiredLinear motion table constructed with premium aluminum alloy and stainless steel, thickened plate ensuring stability during runningMini linear slide table actuator boasts a mini size, 5-inch in length, easy to combine several together for X, Y and Z axis applicationsThe 28 stepper motor mini linear rail slide actuator is ideal for DIY CNC milling carving, 3D printing, laser engraving, automated testing equipment, optical measurement, fine tuning displacement, mechanical positioning and moreSPECIFICATIONMaterial: aluminum alloy, stainless steelTravel Length: 50mm (2 in)Load Capacity: horizontal ≤5kg; vertical ≤1kgSpeed: adjustable 0-8mm/s (pulse generator required)T Screw Rod: diameter 6mmMotor Torque: 0.07 N.m.Motor Current: 0.6APACKAGE1 x 50mm Stroke Mini Linear Stage Actuator with 28 Stepper Motor
- Mini linear stage actuator provides an effective travel of 50mm or 2 inch, load capacity up to 5kg horizontally and 1kg vertically
- Linear rail slide actuator features a T screw threaded rod, diameter of 6mm, lead of 1mm, repeat positioning accuracy of ±0.1mm
- Linear slide table allows for speed adjustment 0-8mm, where a pulse generator is required
- Linear motion table constructed with premium aluminum alloy and stainless steel, thickened plate ensuring stability during running
- Mini linear slide table actuator boasts a mini size, 5-inch in length, easy to combine several together for X, Y and Z axis applications
- The 28*30 stepper motor mini linear rail slide actuator is ideal for DIY CNC milling carving, 3D printing, laser engraving, automated testing equipment, optical measurement, fine tuning displacement, mechanical positioning and more
- Stepper Motor's technical specification: Torque: 0.07Nm; Current: 0.6A; Motor frame: 28mm; Motor body: 30mm
| Item Weight | 10.4 ounces |
|---|---|
| Manufacturer | VQP |
| Package Dimensions | 6.6 x 1.9 x 1.9 inches |
