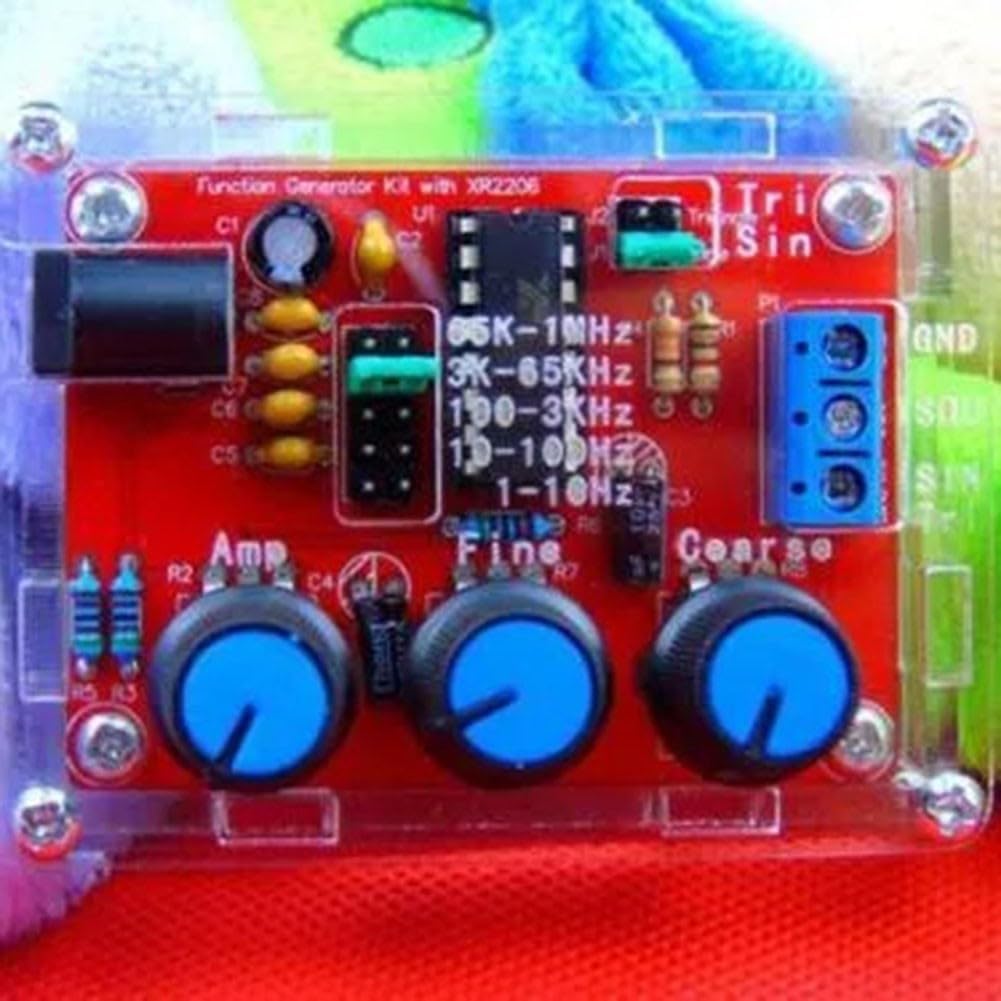

Assembled Signal Generator XR2206, 1Hz-1MHz Function Generator with Sine Square Triangle Wave, 0-8V Adjustable Amplitude, Low Distortion Test Module DIY Electronics Lab Education

Product description Features:*Versatile Waveform Generation: The for XR2206 Signal Generator can produce multiple waveform types including square, sine, and triangle waves, making it for various testing and educational applications. *Adjustable Amplitude Control: With amplitude settings ranging from 0 to 3V for sine and triangle waves, and up to 8V for square waves, users can customize output levels to suit specific project requirements. *Wide Frequency Range: Capable of generating frequencies from 1Hz to 1MHz, this function generator caters to a diverse range of electronic testing scenarios, flexibility in use. *Low Distortion Levels: The device features low distortion rates of less than 1% at 1kHz for both sine and triangle wave outputs, providing accurate and reliable signal generation for applications. * Assembled: The product is already soldered and the user is able to set up the signal generator for immediate use.Using the step:1. J1 cap in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert 1 of)2. J2 cap in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert 1 of)3. SQU blue terminals output pulse4. AMP : Sine wave, triangle wave amplitude adjustment5. FINE : Frequency fine adjustment6. Coarse : Frequency of coarse adjustment Specifications:Part Name:Signal GeneratorMaterial:ABSSize:12*8*2cmColor:RedPackage Content:1*Signal Generator Manufacturer Contact Information no

• [ SIGNAL GENERATION] Create square, sine, and triangle waveforms with this Signal Generator, tailored both educational settings and practical testing scenarios.
• [AMPLITUDE ADJUSTMENT CAPABILITY] Easily adjust amplitudes from 0 to 3V (sine/triangle) or to 8V (square), you can meet specific project demands effectively.
• [EXTENSIVE FREQUENCY RANGE] With a frequency output from 1Hz to 1MHz, this function generator supports a wide array of electronic tests while maintaining adaptability.
• [EFFORTLESS SETUP] Fully assembled upon delivery, the signal generator is user-friendly; just connect it and begin your projects without any hassle.
