Clamp Earth Resistance Tester Pincer Earth Tester Grounding Resistance Measurement with Measuring Resistance Range 0.010Ω to 200Ω Resolution 0.001Ω

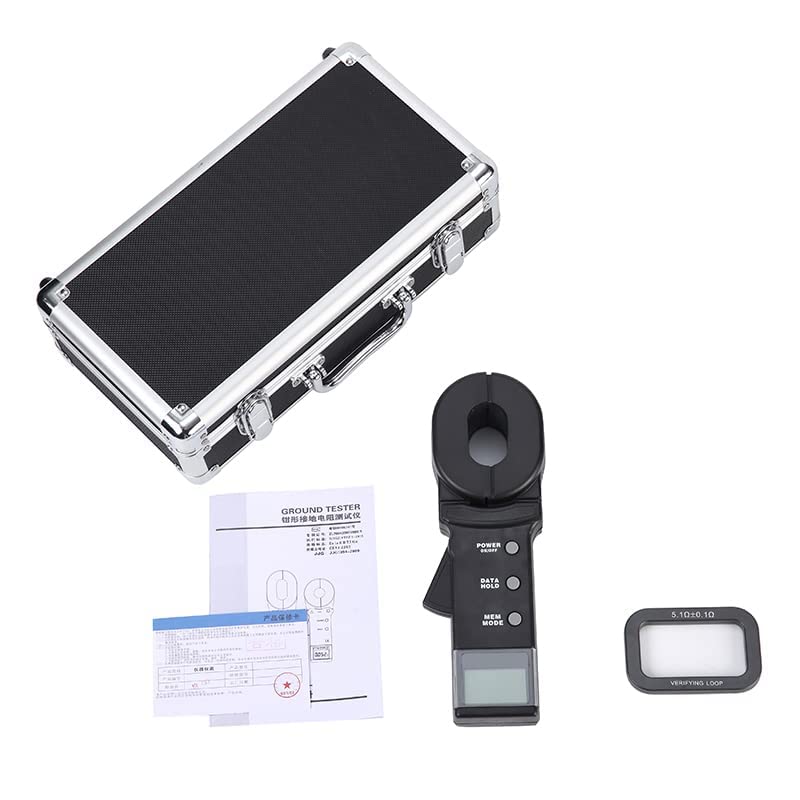

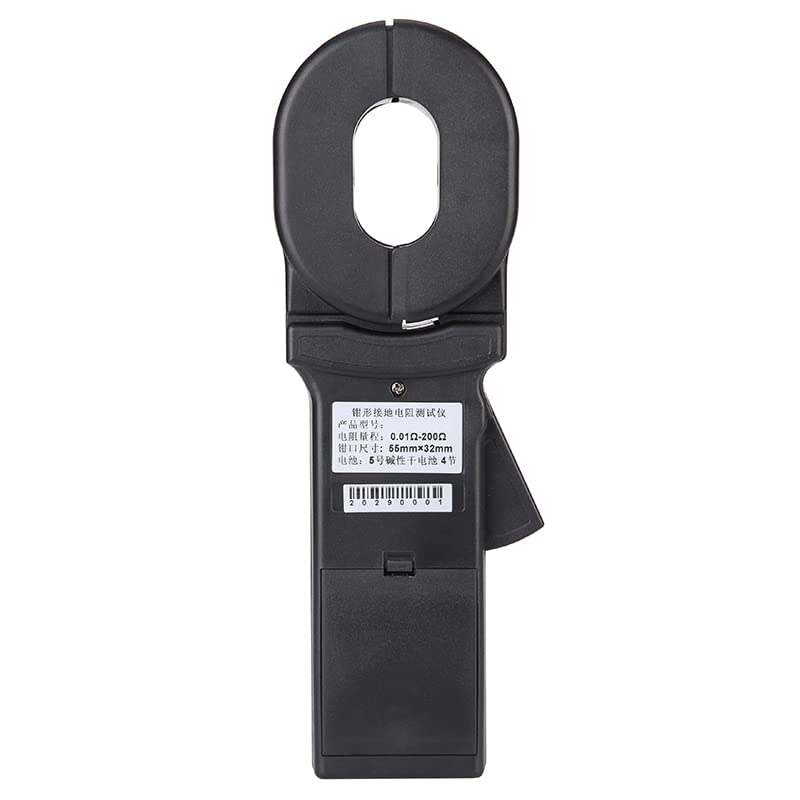

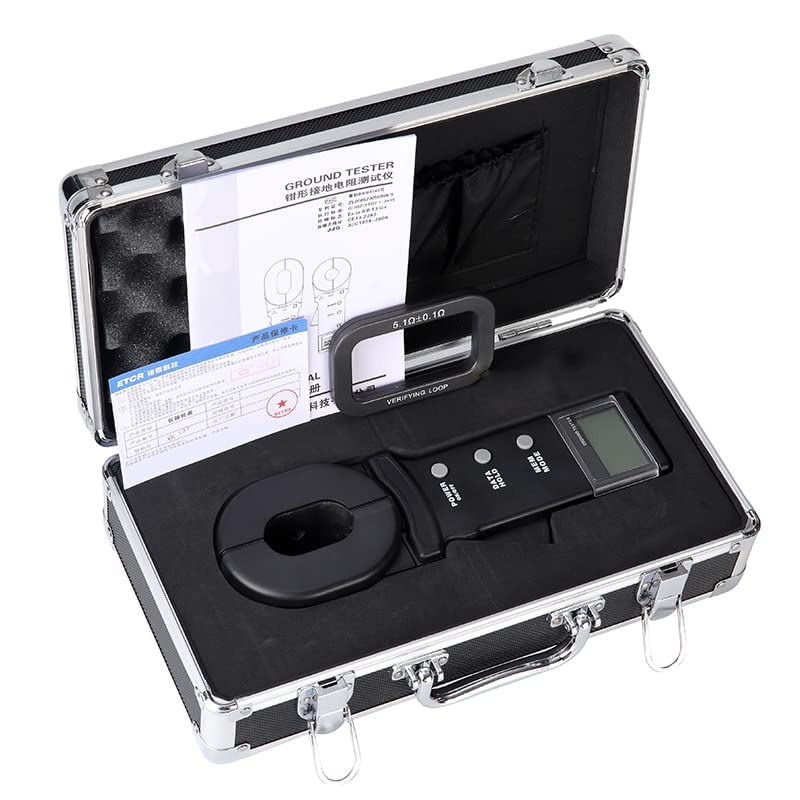

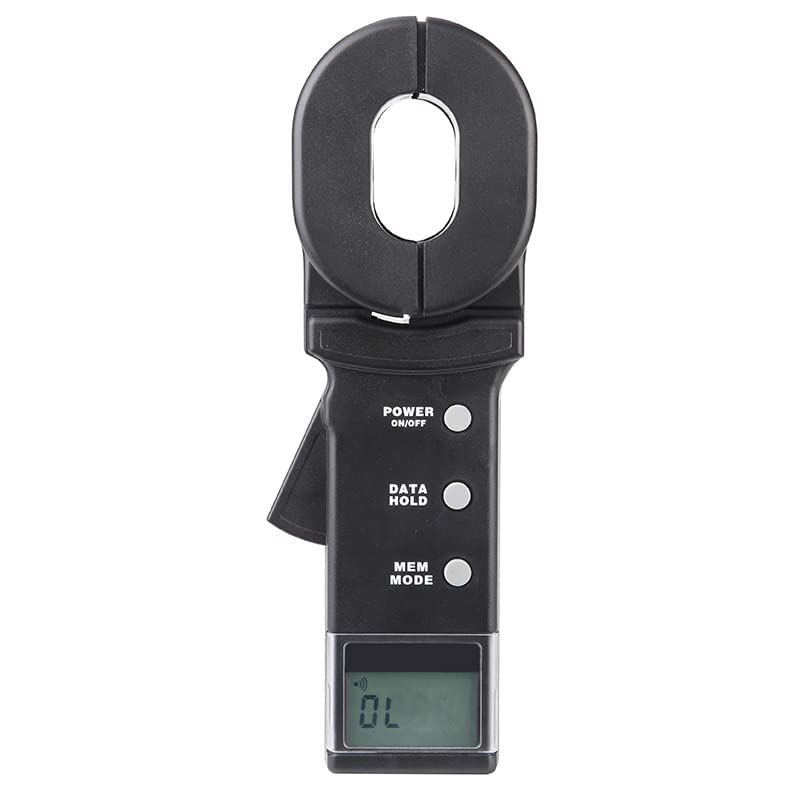

QIUSUO Clamp Earth Resistance Tester Pincer Earth Tester Grounding Resistance Measurement with Measuring Resistance Range 0.010Ω to 200Ω Resolution 0.001Ω Technical specification Resistance range:200Ω;resolution 0.001Ω Power source: 6VDC (4 alkaline dry batteries LR6)(batteries not included dring the shipment!!!) Jaw size:55mm×32mm Clamp meter size: length, width and thickness 275mm×85mm×56mm Clamp meter mass about 874g (including battery), total mass: about 1.98kg Liquid crystal display: 4-bit LCD digital display, length and width 47mm × 28.5mm Data storage: 99 groups Alarm function: Yes Alarm value setting: Resistance: 1-199Ω Operating temperature and humidity: -10℃-55℃; 10%RH-90%RH Protection level: double insulation Gear Shift: Fully automatic gear shift Accessories: Clamp meter: 1 pc; Test ring: 1 pc; Instrument case: 1 pc.

• Alarm function, data storage, data retention function.
• Resistance range 0.010Ω-200Ω, resolution 0.001Ω, jaw size 55mm × 32mm
• Clamp grounding resistance tester is mainly used for grounding resistance measurement, circuit resistance measurement, judgment of ground fault.
• Clamp grounding resistance meter can measure the ground fault that can not be measured by traditional methods, and can be applied to occasions that can not be measured by traditional methods.
• Non-contact measurement is safe and fast, when measuring the grounding system with loop, it is not necessary to disconnect the grounding lead wire or auxiliary grounding pole, which saves time and labor.
