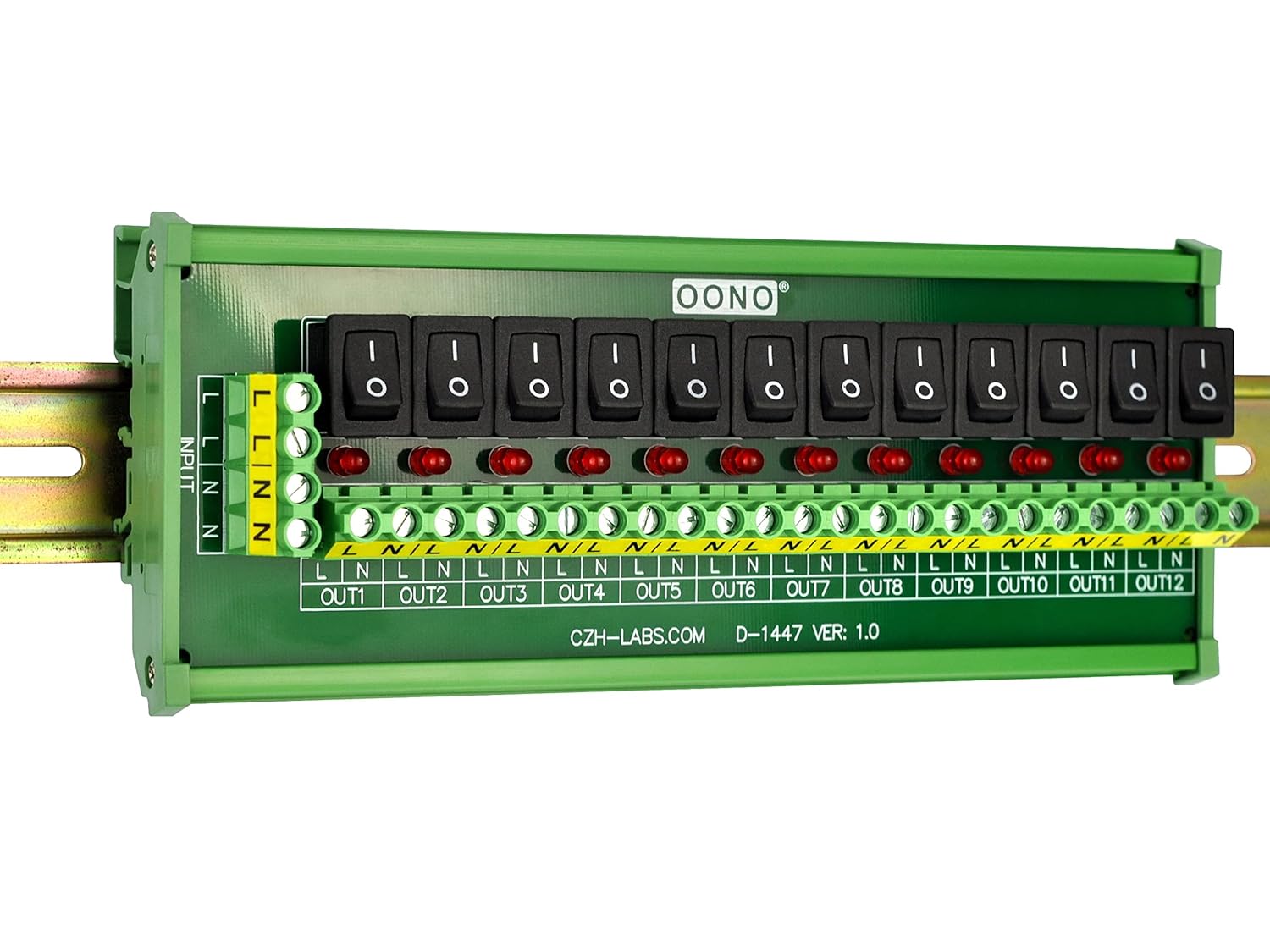

DIN Rail Mount 12 Channel Rocker Switch AC 115V 230V Power Distribution Strip Module
4.5 (51 items)
Limited Time SaleUS$24.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211068550 | Release Date | 2026/04/04 | List Price | US$16.00 | Model Number | 211068550 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Working voltage AC 70 to 250V. Maximum total input current 30 Amps. 12 Channels output, each channel maximum output current 10 Amps. 2, Input terminals pitch 7.62mm/0.3 inch, maximum current 30 Amps for per position, wire size 26 to 10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules. 3, Output terminals pitch 7.62mm/0.3 inch, wire size 26 to 10 AWG, stripping length 8mm, Metric M3 slotted screw. 4, Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function. 5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
- Working voltage AC 70 to 250V. Maximum total input current 30 Amps. 12 Channels output, each channel maximum output current 10 Amps.

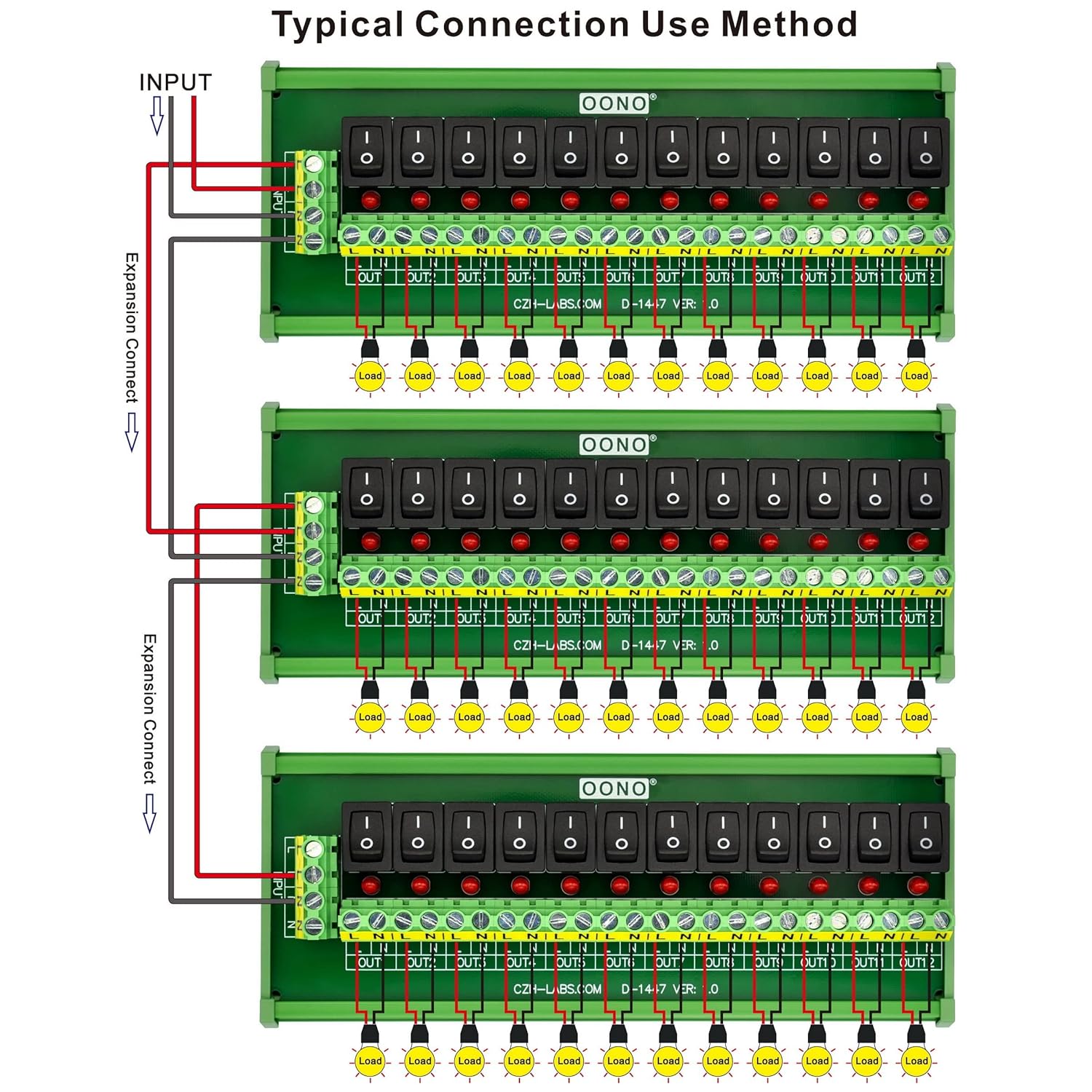

- Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
- Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
- Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
| Color | Green |
|---|---|
| Model | D-1447T |
| Terminal | Screw |
| Brand Name | OONO |
| Unit Count | 1.0 Count |
| Switch Type | Rocker Switch / Paddle Switch |
| Circuit Type | 12-way |
| Manufacturer | CZH-LABS |
| Material Type | Nylon |
| Mounting Type | DIN Rail Mount / Screw Mount |
| Connector Type | Screw |
| Current Rating | 30 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 8.74 x 3.43 x 2.05 inches |
| Number of Items | 1 |
| Contact Material | Brass |
| Operating Voltage | 120 Volts (AC) |
| Specification Met | Din, Industry Standards |
| Included Components | 1x Switch Module |
| Number of Positions | 12 |
| Upper Temperature Rating | 75 Degrees Celsius |
