GPS Module GNSS For U B X SAM-M10Q Compatible With COMPASS M10Q-5883 Compatible With RC Racing Multirotor Drones(1PC M10Q-5883)

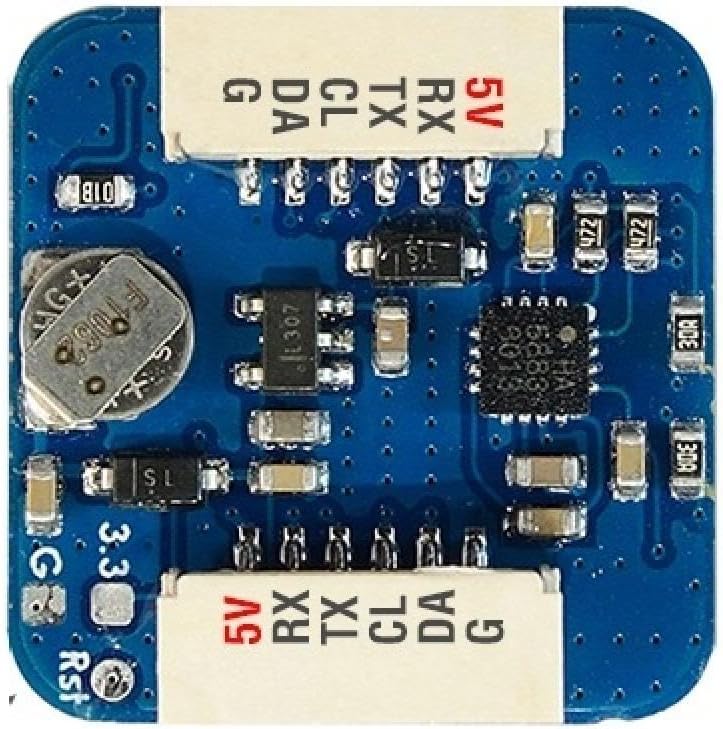

For Matek Systems GNSS For U b x SAM-M10Q and M10Q-5883 GPS modules are designed for use in RC, racing, multirotor, and drone applications.These compact modules provide precise positioning using multiple satellite constellations including GPS, GLONASS, Galileo, BeiDou B1C, QZSS, and SBAS.The SAM-M10Q model features a UART interface with a JST-GH-4P connector (1.27mm pitch) and supports both UBX and NMEA protocols.It operates at a default baud rate of 9600 and delivers to 5Hz update rates when configured for concurrent reception across GPS, Galileo, BeiDou B1C, and GLONASS.The module does not include a / compass.It measures 26mm x 16mm x 8mm, weighs 7.5g, and includes a 15x15x4mm patch.Power is supplied via a 4–9V input, typically drawn from the flight controller’s 5V rail, with typical current draw of 10mA.A green PPS indicator remains solid after power-on and blinks at 1Hz once a GNSS fix is achieved.The M10Q-5883 integrates the same SAM-M10Q GNSS receiver with an added QMC5883L magnetometer for heading reference.This version uses a JST-GH-6P connector (1.27mm pitch), providing both UART for GNSS communication and I2C for compass data.It supports the same UBX protocol and update rates as the standalone SAM-M10Q.Dimensions are 20mm x 20mm x 12.4mm with a weight of 8g.Input voltage range is 4–9V, with power consumption of 13mA.The module also includes a 15x15x4mm patch and features the same PPS indication behavior.Both models are compatible with flight controllers supporting UBX configuration via firmware such as INAV 5.0.0, Betaflight 4.3.0, and ArduPilot 4.3 or later.Since these modules do not have internal data flash, settings are lost when power is removed and must be reconfigured by the flight controller on boot.The UBX protocol allows bidirectional communication, enabling real-time configuration changes from the flight controller without requiring external tools.Each unit comes with a matching wire harness: 20cm JST-GH-4P to JST-GH-4P for the SAM-M10Q and 20cm JST-GH-6P to JST-GH-6P for the M10Q-5883.Wiring connections are straightforward: connect VCC to 4–9V, TX to UART_RX, to UART_TX, and GND to ground.For the M10Q-5883, additional connections to I2C_SCL and I2C_SDA are required for compass functionality.A reset function is available on the M10Q-5883 by grounding the - pad for at least 100ms, which triggers a cold start and may help recover communication if the module is not detected.Scratches on the ceramic are normal and result from factory tuning processes.

• Model compatibility designed specifically for Matek Systems GNSS UBlox SAM-M10Q and COMPASS M10Q-5883 modules
• Compact and lightweight construction ideal for integration into RC racing drones and multirotor aircraft
• GPS performance supports positioning and stable flight navigation in dynamic environments
• Suitable for a wide range of unmanned aerial vehicle applications including drone racing, aerial photography, and autonomous flight systems
• Easy to install with standard mounting configurations and connectivity for enhanced field
