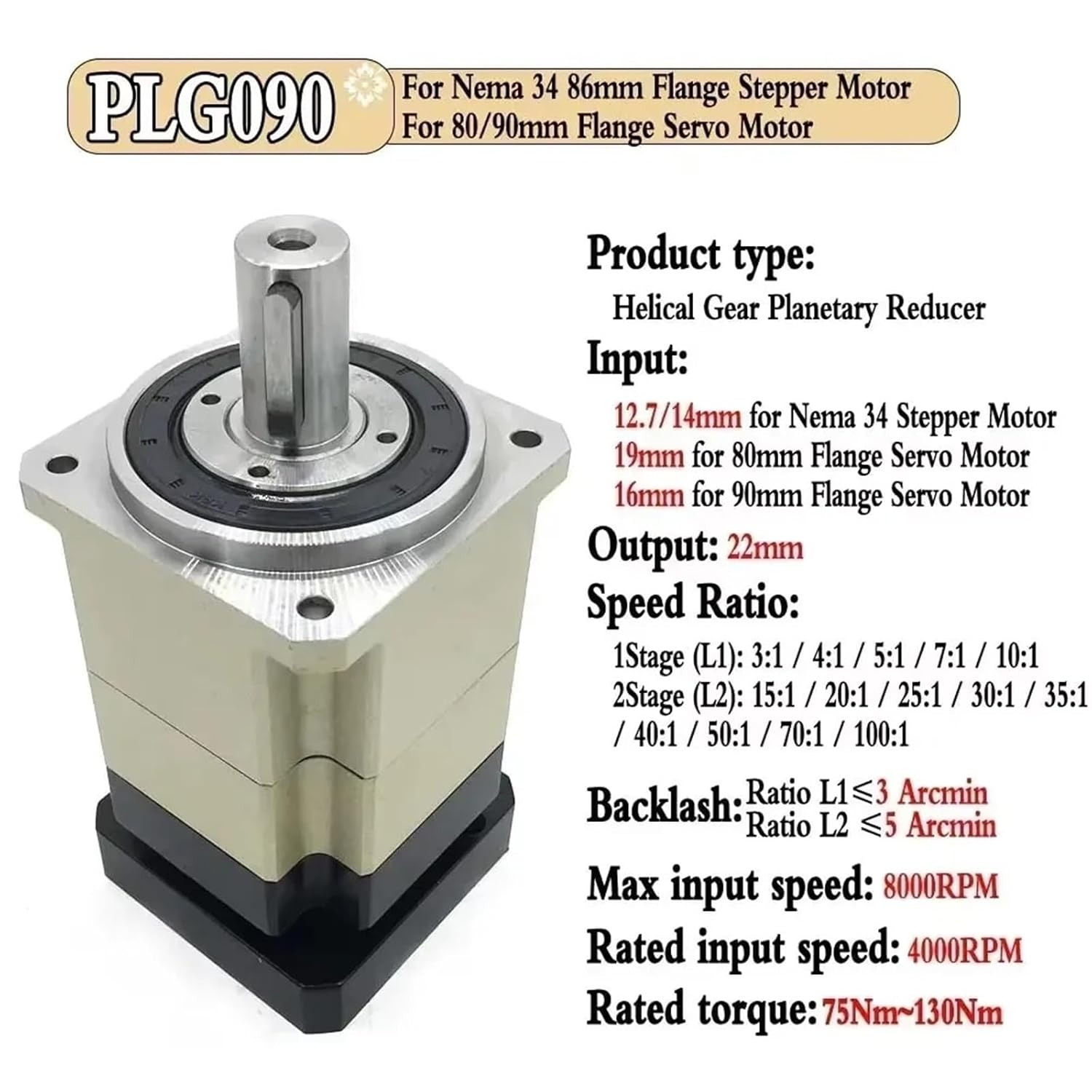

High Precision Helical Gear Nema 34 Planetary Gearbox Ratio 5:1~100:1 90mm Flange Servo Planetary Reducer 12.7 14 16 19mm Input

86 Nma 34 Planetary Gearbox Gear 3arcmin High Precision Helical Nema34 Stepper Motor Planetary Reducer CNC Part Speed Reducer1* Planetary reducer1*Key4*Install screwsPLG090-series parameters:Reducer type:Helical gearL1: ratio3,4,5,7,10;L2: ratio15,20,25,30,40,50,70,100Input size: 12.7mm/ 14mm/ 16mm/ 19mmOutput size:22mmMaximum torque: 2 times the rated torqueEmergency braking torque: 3times the rated torqueMaximum radial force: 3250 NMaximum axial force: 1300 NTorsional rigidity: 12 Nm/arcminMaximum input speed: 8000rpmRated input speed: 3000rpmAverage lifespan: 20000 hoursFull load efficiency:L195%, L290%Accuracy: L15arcmin; L27arcminNoise: 58(Click on the model to jump)PLG042PLG060PLG090PLG120PLG140Input Flangemm42.66090130176Input Sizemm5/86.35/8/11/1412.7/14/16/1819/22/2435Max. Output TorqueNm2 Times Rated Output TorqueInstant Braking TorqueNm3 Times Rated Output TorqueMax Radial TorqueN 7801530325067009400Max Axis TorqueN 390630130030004700Torsional StiffnessNm/arcmin2.56 122347Max Input Speedrpm80008000800080006000Rated Input Speedrpm40004000300030003000NoisedB5658606568Life timeh 20000Full Load Efficiency% L195%, L290%BacklashPOStage 1arcmin55555Stage 2arcmin77777ParameterStageRatioPLG042PLG060PLG090PLG120PLG140Rated Output Torque (Nm)Stage 13:119401051653604:119451302304805:117451302304807:1144510022048010:1113075175360Stage 215:1194010516536020:1194513023048025:1174513023048030:1194010516536035:1174513023048040:1194513023048050:1174513023048070:11445100220480100:1113075175360IP DegreeIP65Operating Temp-10~90<;18.65Model Number : PLG090-SERIESConstruction : Permanent MagnetProtect Feature : Drip-proofCommutation : BrushEfficiency : IE 1Origin : Mainland ChinaCertification : CEInput size : 12.7/14/16/19mmOutput size : 22mmArcmin : 5Product type 1 : PLG090Product type 2 : Motor reducerProduct type 3 : ReducerProduct type 4 : electric motor reducerProduct type 5 : planetary gear motorProduct type 6 : planetary reducerProduct type 7 : 90MM Servo motor

• Wide Ratio Range:Offers 5 1 to 100 1 ratio options, enabling precise speed control for diverse systems.
• Helical Gear Reducer|High Precision Helical Gear:Features a helical gear with precision of ≤5 arcmin for smooth and accurate motion control.
• Wide Input Range:Accommodates various motor sizes from 5/8 inch to 19mm, ensuring versatile integration.
• Durable Construction:Built with a permanent magnet and IE 1 efficiency for a reliable, long-lasting performance.
• High Torque Output:Delivers up to 2x rated output torque, making it suitable for demanding applications.
