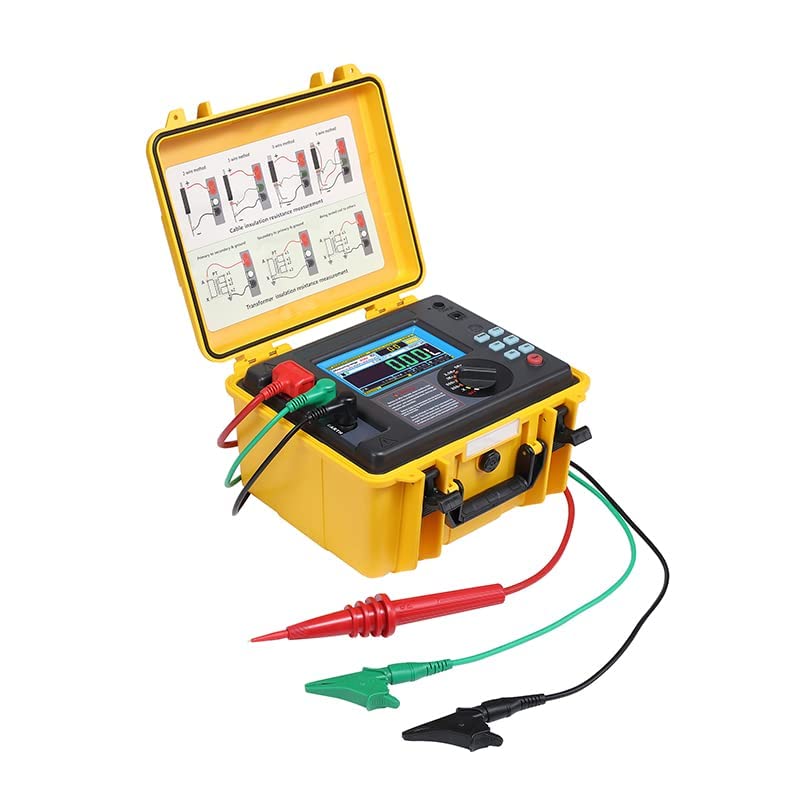

High Voltage Insulation Resistance Tester Intelligent H/V Insulation Resistance Meter with Insulation Resistance Range 0.5MΩ～2TΩ Short Circuit Current >5mA

QIUSUO High Voltage Insulation Resistance Tester Intelligent H/V Insulation Resistance Meter with Insulation Resistance Range 0.5MΩ～2TΩ Short Circuit Current >5mA Technical specifications Rated Voltage;250V,500V,1000V,2500V,5000V Output Voltage Accuracy：(5%~10%)±10V Insulation Resistance Range;5KV,2TΩ,5mA Output Short Circuit Current:≥5mA Power Supply:Rechargeable lithium battery pack 5.2Ah Polarization Index Test:Yes Dielectric Absorption Ratio Test:Yes Filtered Resistance Test Mode:10S,20S,30S,40S (4 selection) Voltage Measurement Range: AC/DC 0V~1000V;Accuracy: ±(5%+3V);Resolution: 1V Current Measurement:Range: 0.01nA~6.00mA;Accuracy: ±(5%+0.2nA);Resolution: 1pA Capacitance Measurement:Range: 10nF~25uF;Accuracy: ±(10%+5nF);Resolution: 1nF Voltage Monitor:Monitor the voltage of the measured object, and monitor discharge status after test, Forbidden to test when voltage is larger than 36V, protect instrument and operator. Test Timer:Automatic record test time, time range: 0s~9999s Storage Function:Automatically store the test data with test date and time, total of 1000 groups Upload Function:Upload the stored data to computer with USB communication cable. Battery Power Display:With battery power display, when battery voltage low will remind to replace the battery Automatic Shutdown:After 15 minutes start up will shut down automatically without any operation Meter Dimension:280mm×260mm×160mm Meter Weight:4400g (include battery) Test Wire:Red color high voltage test wire 1 pcs (with alligator clip 1PCS and hook 1PCS), green color test wire 1PCS, black color test wire 1PCS Working Environment:-20℃~50℃;80%rhStore Environment-25℃~65℃;80%rh Insulation Resistance:50MΩ(1000v)(between the test circuit and shell)

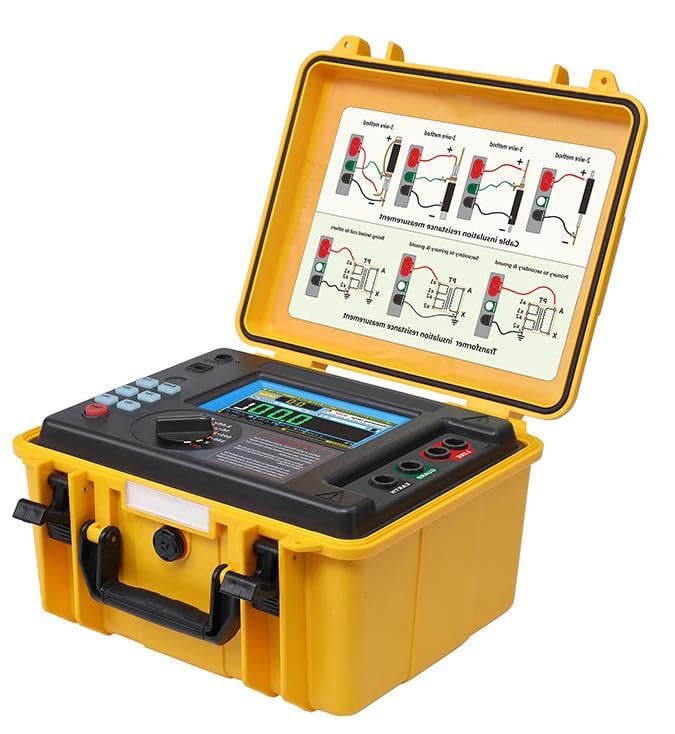

• Double-layer shell structure, rugged and durable, protection class IP65;Withstand Voltage:AC 3Kv 50Hz 1min(between the test circuit and shell)
• Test timer function, automatically record the test time. Automatic discharge function, automatically release the charged charge of the DUT after the test.

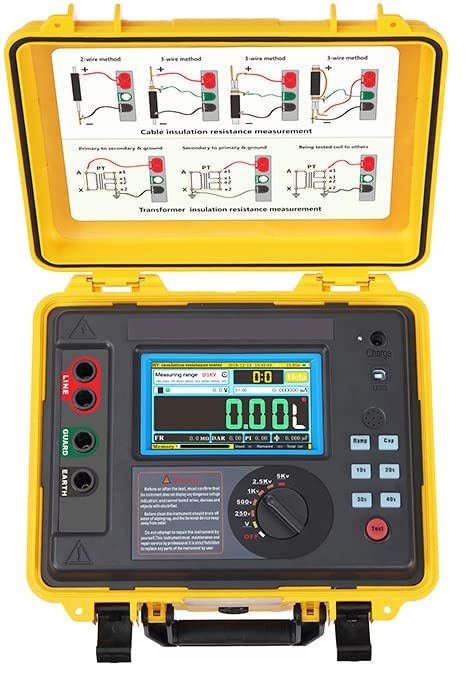

• Rich display content, the same screen display: various test modes and insulation resistance value, output voltage and DUT voltage, leakage current, test timing, test time, battery power, operation help.

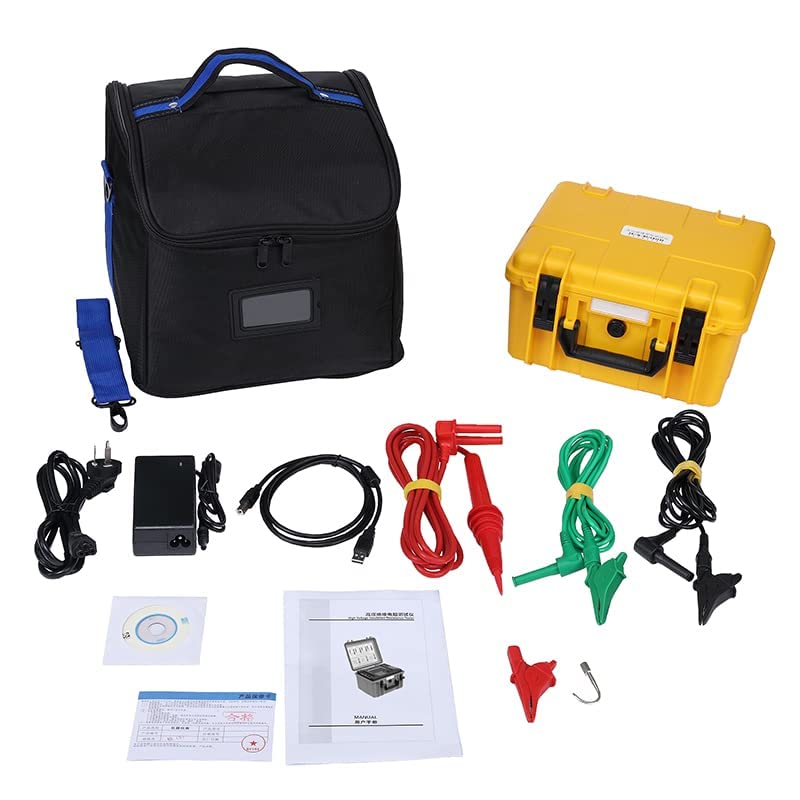

• Storage function, can automatically store 1000 groups of real-time test data with test date and time and test timing. Upload function, the recorded data can be uploaded to the computer via USB communication cable for statistical analysis.

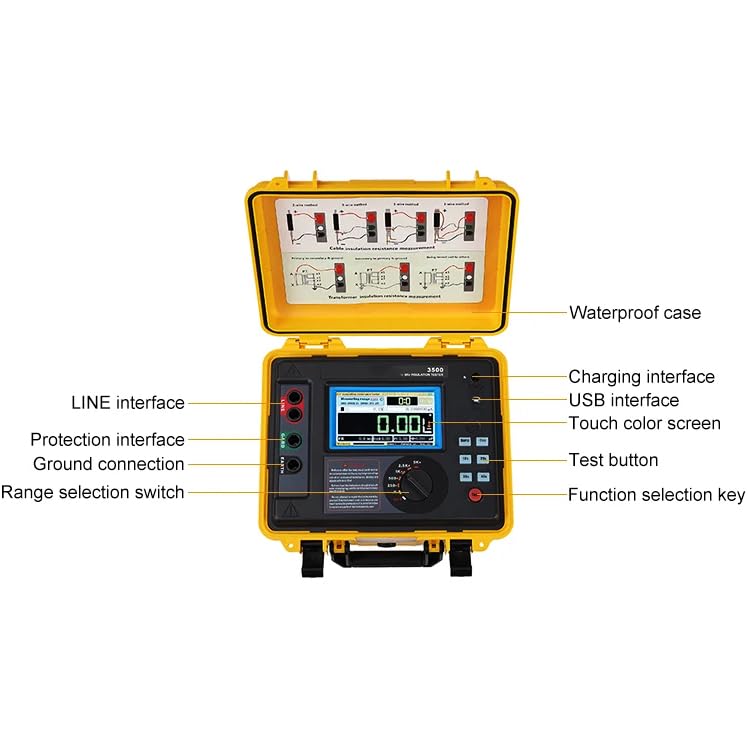

• Touch color screen and keys, band knob combination, the function of direct one-key test completed, query record operation is simple. Voltage monitor function, automatically monitor the charged voltage of the measured object.
