KCM-ODM High Precision Small Peristaltic Dosing Pump 12V /24V with Stepper Motor-Installation ODMA Type(B14,12v-3 Rollers)

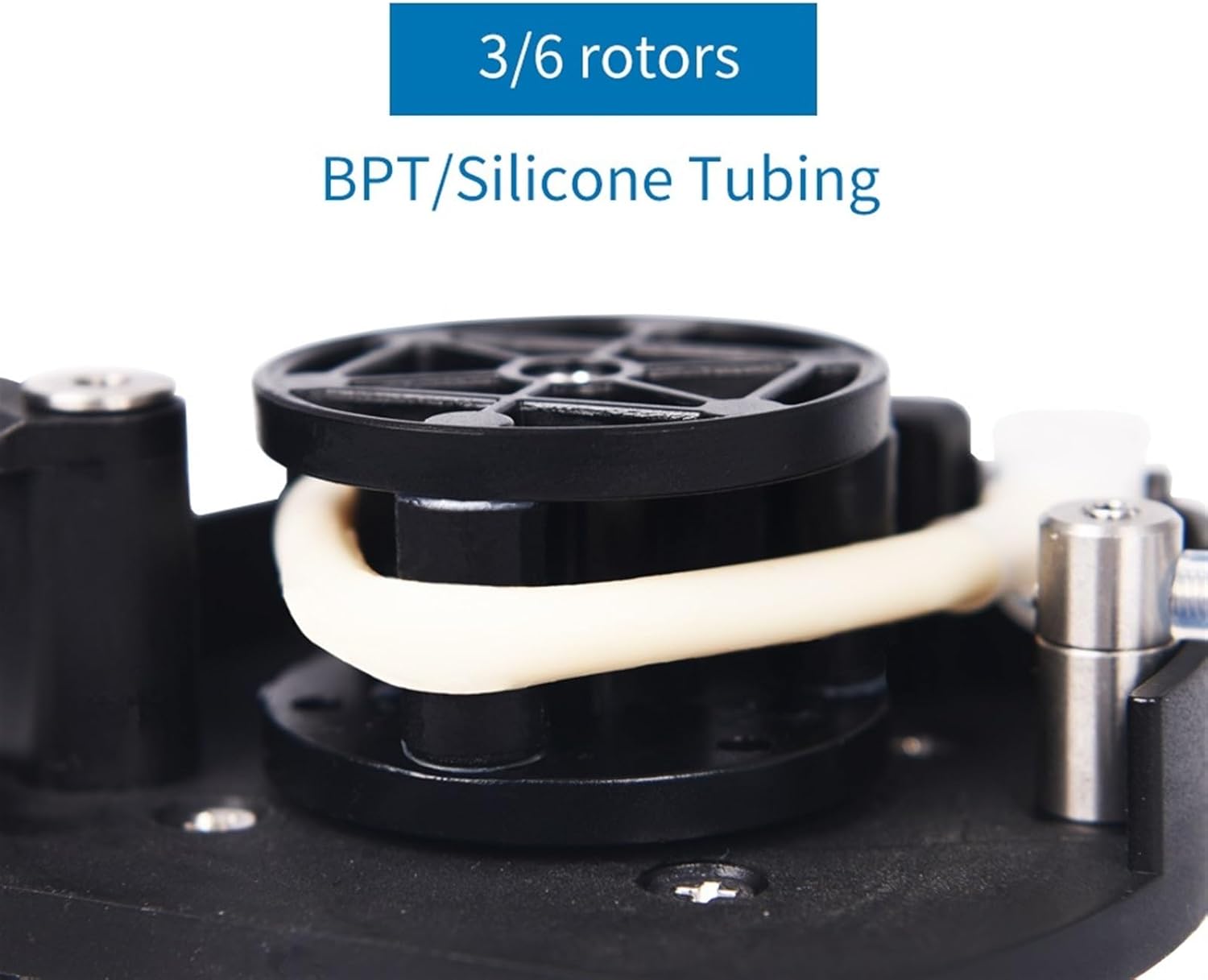

Water PumpsKCM-ODMA B253KCM-ODM Peristaltic Pump Stepper MotorSelection Guide1.Know what liquid do you want to transfer?(Imported BPT Tubing Chemical stable; Silicone tubing is suitable for Neutral liquid.)2.What's your bottle volume and how many bottles you want to fill 1 minute?3.Select the tubing size based on the following chart.All the data in the chart is tested on the water.If your liquid is viscous or corrosive, please choose BPT tubing.Pump HeadTubeID: inner diameterOD: outer diameterSpeedrange(RPM)Flow rate(ml/min)Tubing lifetimeTubing working temperature6-rotor Pump headB14ID1.6 x OD4.8mm0.1-400641000H-51~1323-rotor Pump headB16ID3.2 x OD6.4mm0.1-4002521000H-51~1323-rotor Pump headB40ID4.0 x OD7.2mm0.1-4003361000H-51~1323-rotor Pump headB25ID4.8 x OD8.0mm0.1-4004521000H-51~132Suitable for viscous and non-viscous liquid transferHigh precision, small pulsationIt can be placed outside the instrument panel to pass ground detection.Simple structure, high reliabilityPump tube can be quickly replacedImported motor has excellent performanceBasic ParametersMotor: Stepper motorVoltage: 12V/24V with Driver Board KMD-M42S and 2802 controllerFlow: 13.5~320ml/minTube material: Silicon tube/PharMed BPTInstallation method: ODMA/ODMBRotor: 3/6 rotorsPump head: Engineering plasticsCustomize: YesTemperature: 0~40Humidity: Less than 80%ODMA--Rubber shock behind the pump(Regular one)ODMB--No Rubber shockVarious Applications# Experiment# Filling packaging# Laboratory; research institutes# Food and beveragePacking List1 KCM-ODM Pump with Driver Board and 2802 Controller.More DetailsS: Material 16: Tube size 8: Rollers ODMA: Installation modeTube ConnectorCodeTube connector codeIDRecommended diameter(ID)1 25.20.00060.62.01.8~2.42 25.20.0008<;3.22.5~3.23 25.20.0010<;4.03.3~4.0Driver board and ControllerDriver board: KMD-M42SController: 2802With the 2802 Controller: Support LED Digital Display + Flow Speed Button(Black) + Stat and Stop Button(Green) + Flow Direction Button(Red)Wires DescriptionInstallation MethodKCM-ODMAWall InstallationContact us if any question.We are always at your service!Waiting for your order.
