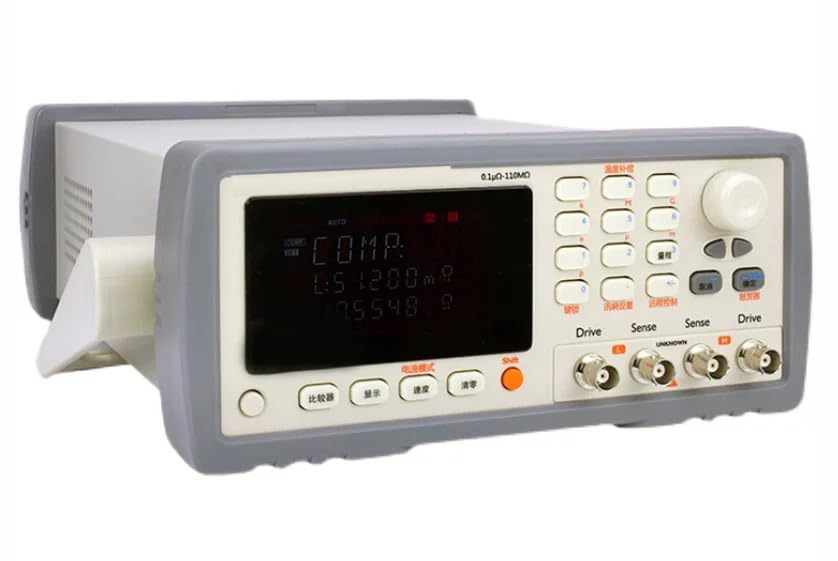

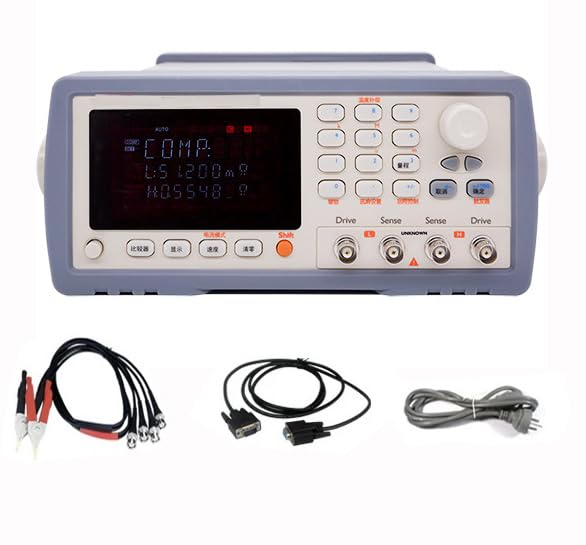

Precision Benchtop DC Resistance Tester with Measurement Range 0.1μΩ～110MΩ Accuracy 0.02% Short-Circuit Reset for All Range Handler Interface RS232C Interface 30 Groups of Stored Data

Features●Comparator output: More detailed sorting results can be output through the built-in Handler interface and RS232C.●Sound: You can set the sound switch of all comparator results.●Users can set the GD/NG signal and adjust the display brightness according to their needs.●Keyboard lock function.●Built-in interface: Handler interface, RS232C interface.●Compatible with SCPI instruction set, bus data and commands are transmitted using ASCII code to complete all instrument functions. Compatible with IEEE-488.1 and IEEE-488.2.●Multiple trigger modes: internal trigger, manual trigger, external trigger and remote trigger.specifications●Parameter: DCR●Accuracy: 0.02%●Measurement Range: 0.1μΩ～110MΩ●Measurement current: Current: 1μA~1A●Range: Automatic , Manual ,11 ranges●Speed: 167times/s, 60 times/s,10 times/s, 2 times/s●Display: show,、ΔABS、Δ% , sorting results●Display Max: 105000●Adjustment: short-circuit reset for all range●Comparator: 30 groups of comparator, NG-LO, GD-IN,NG-HI display and output, beep adjustable●Trigger: internal,manual, external, remote●Interface: RS232 Handler interface●Temperature compensation: Accuracy 0.2 °C range: 0～80 °C●Method: 4 terminal shielding (2 check terminal & 2 driving terminal), external shielding ground section●Power Supply: 198VAC～240VAC Fre：50Hz Power：15VA●Dimension & Weight: 216x88x323mm Weight：4kg●Accessories: ATL501,ATL801●Other Functions: 4 color VFD display , keyboard lock, data hold functionApplications●High-precision high, medium and low value resistors; ●Various switch contact resistance; ●Connector contact resistance; ●Relay wire package and contact resistance; ●Winding resistance of transformers, inductors, motors, deflection coils; ●Wire resistance; metal riveting resistance of cars, ships and airplanes; ●Printed plate lines and hole resistance, etc..

• This is a high-precision, wide-range, high-performance microprocessor-controlled resistance tester. the test range (0.1μΩ～1GΩ), Maximum display is 105,000. The highest test speed 167 times per second, and the basic accuracy can reach 0.01%. Its wide range of tests can be adapted to different requirements.
• The instrument has a professional sorting function, with 30 groups of stored data, various sorting alarm settings, equipped with a Handler interface, which can be used in an automatic sorting system to complete automatic assembly line testing. also equipped with RS232C interface for remote control and data acquisition and analysis. And temperature compensation interface, users can perform temperature compensation on the DUT.

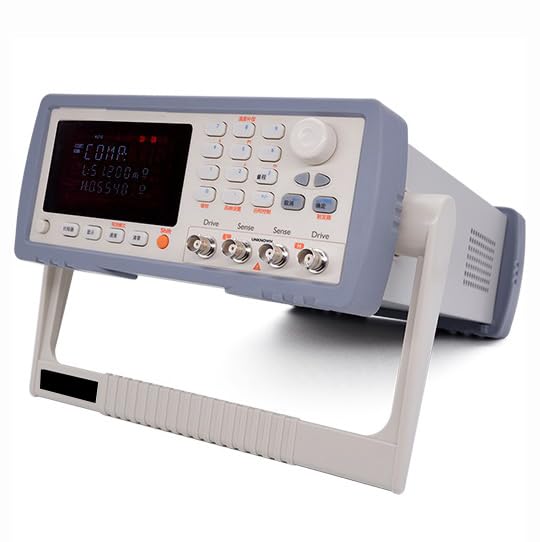

• The highly integrated design and scientific structural design make the DC Resistance Tester chassis not only small and light, but also strong and shock-resistant, making it suitable for use in laboratories and measurement rooms as well as on-site operations.Its wide range of tests can be adapted to various different requirements.
