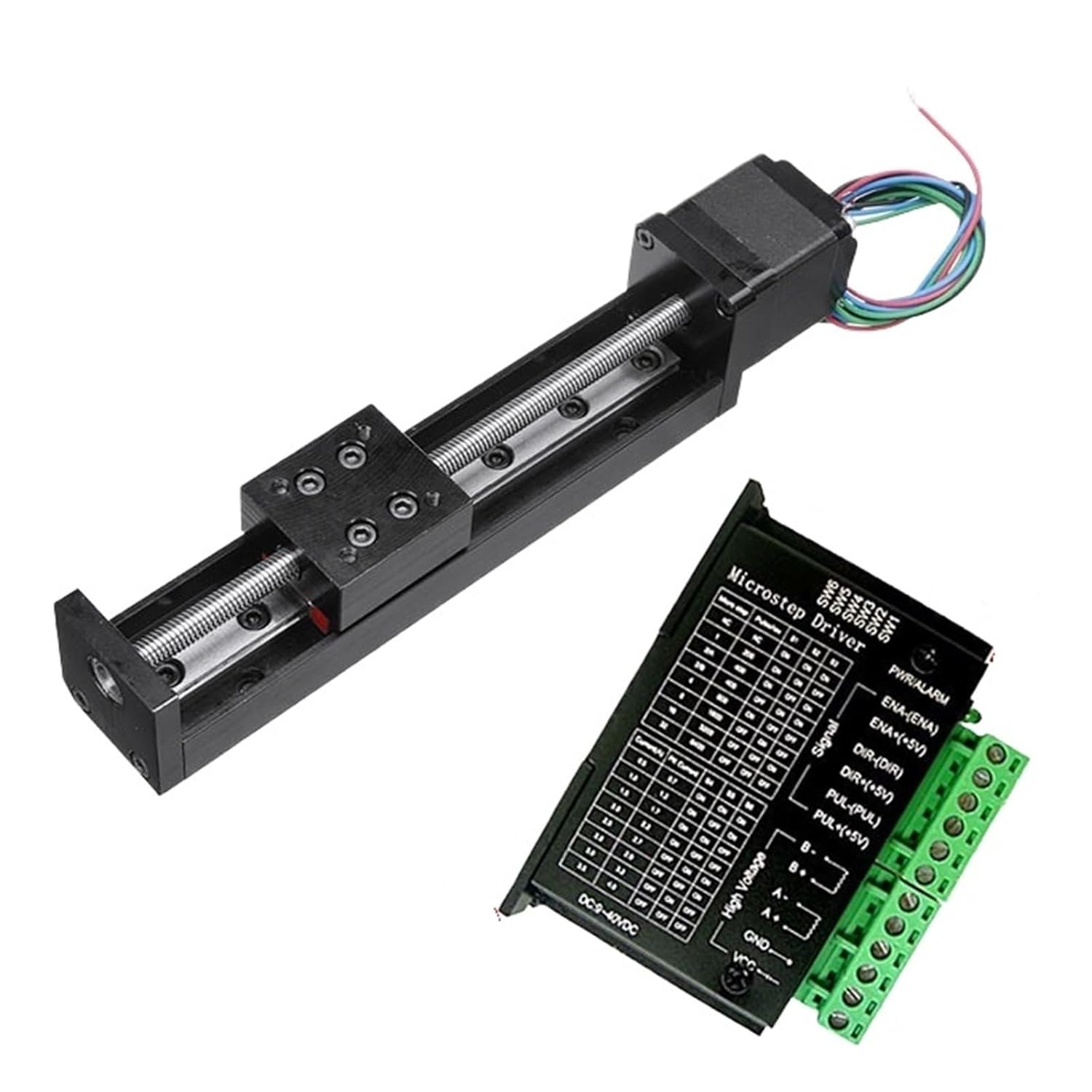

T-Type Linear Slide Rail 50-300mm Travel Slide NEMA11 Stepper Motor Driver TB6600 kit CNC Linear Guide XYZ axis(50mm Stroke Sliding,6mm Pitch)

MotorsHorizontal load-bearing capacity: 5KG (maximum)Vertical load-bearing capacity: 1KG (maximum)Mobile panel size: 30mm X 32mm Effective stroke/travel: 50-300mmRepeat positioning accuracy: 0.02mm-0.0mMaximum speed: 80mm/sRail width: 8MMBlock: MGN8HScrew precision: C7Screw model: T6*2/T6*4/T6*6/T6*12 (diameter 6mm, lead 1mm/2mm/4mm/6mm/12mm, please select the lead you need)Stepper motor specifications:Motor size: NEMA11 (28MM)Shaft diameter: 5mmHolding torque: 6.5Ncm/0.065NmType: HybridStage: 2Current: 0.6A* DC 9-42V power supply (12-24V recommended)* Control signal input voltage 3.3V-24V*Output peak current can reach 4.0A (suitable for stepper motors of 1.8NM and below, 57, 42)Model: T06Rail width or diameter: 12mmHorizontal load: 5KG (maximum)Vertical load: 2.5KG (maximum)Screw type: Trapezoidal screw (T6)Pitch: 1mm/2mm/4mm/6mm/12mmMotor size: NEMA11 (28MM)Holding torque: 6.5Ncm/0.065NmMobile phone panel size: 30mm X 32mmRepeat positioning accuracy: 0.02mm-0.03Maximum speed: 80mm/sRail width: 8MMBlock: MGN8HStroke: 50MM/100MM/150MM/200MM/250MM/300MMSliding stage: 28mm stepper motorLinear Guides: Linear ActuatorsLinear guides: linear platformsLinear guide: stepper linear guideZ-axis sliding table: mini sliding tableMini linear guides: mini slidesMini Linear Guides: Mini Linear StagesT-type slide: XYZ axis linear guideGuide rail: guide rail motorLinear Motors: Linear Guide KitsT-type slide linear guide: T-type slideMini T-type slide: XY axis slide
