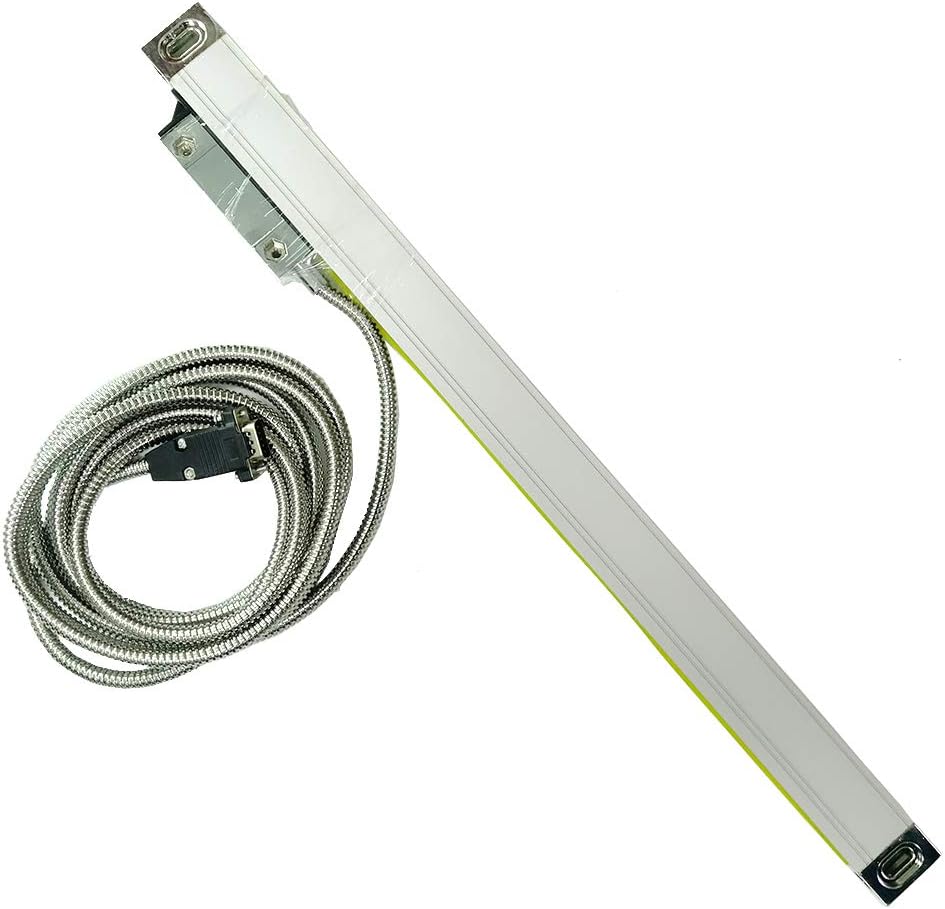

TOAUTO Lathe Glass Scales 0.005mm High Precision Grating bar 50-1000mm for CNC Milling Grinding Machine (700mm 28")

Package:1 x English ManualAccessories: scale cover, L connecting bracket, scale cover, screw bag and so on.Specifications of Linear Scale Travel (measuring) length: 0-1000mm / 0-40inch Total (overall) length: Travel length + 140mm Operating temperature: 0~45 degree centigrade Storage temperature: -30~70 degree centigrade Relative humidity: Less than 90% Readout allowable input signal: TTL square wave Allowable input signal frequebcy: Less than 5M Hz Max resolution of digital display length: 5µm(0.005mm) Min resolution of digital display angle: 0.0001/pulse Dimensions: Please see drawing below Linear Scale communication: DB9(RS232) Cable length: 3 Meter (about 9 feet) Input voltage: 5V Application fieldApplicable for the machine such as millers, lathes, boring machines, grinding machines and EDM, etc.. Read all the instructions in the manual carefully before used and strictly follow them. Keep the manual for future references.

• ★ Single linear scale with 5V / TTL / 0.005mm (5um/ 5micro) resolution & DB9(RS232) connector
• ★ Package included Linear Scale+ scale cover, L connecting bracket, screw bag
• ★ The repeated positioning measurement is more stable.
• ★ We also supply 0.001mm resolution, each 0.001mm(1um) scale should charge extra fee, please contact us before ordering if need
• ★ Application: Widely use for millers, lathes, boring machines, grinding machines and EDM, etc.
